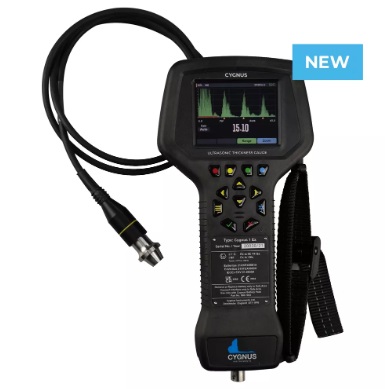

CYGNUS 1EX 防爆型超音波測厚計
產品介紹
Cygnus1EX是一款結實耐用的多重波超音波測厚儀，它具有大型彩色 LCD 螢幕和 3 種測量模式，適用於全塗層測量和各種材料 - 包括嚴重腐蝕的金屬。 設計易於使用外該儀表擁有先進的數據記錄和手動測量模式。
規格
- 通過 ATEX、IECEx、UKEX 的 等級0 等級1本安認證和 NRTL 認證
- 3 種測量模式 - 用於腐蝕程度、各種材料和塗層測量
- 手動測量模式允許配置及增益以適合應用
- 堅固、耐用、防震
- A-Scan, B-Scan
- 深塗層功能忽略厚塗層
- 可以保存和恢復測量設置以便快速啟動
- 測量凍結功能和參考/最小/最大厚度限制

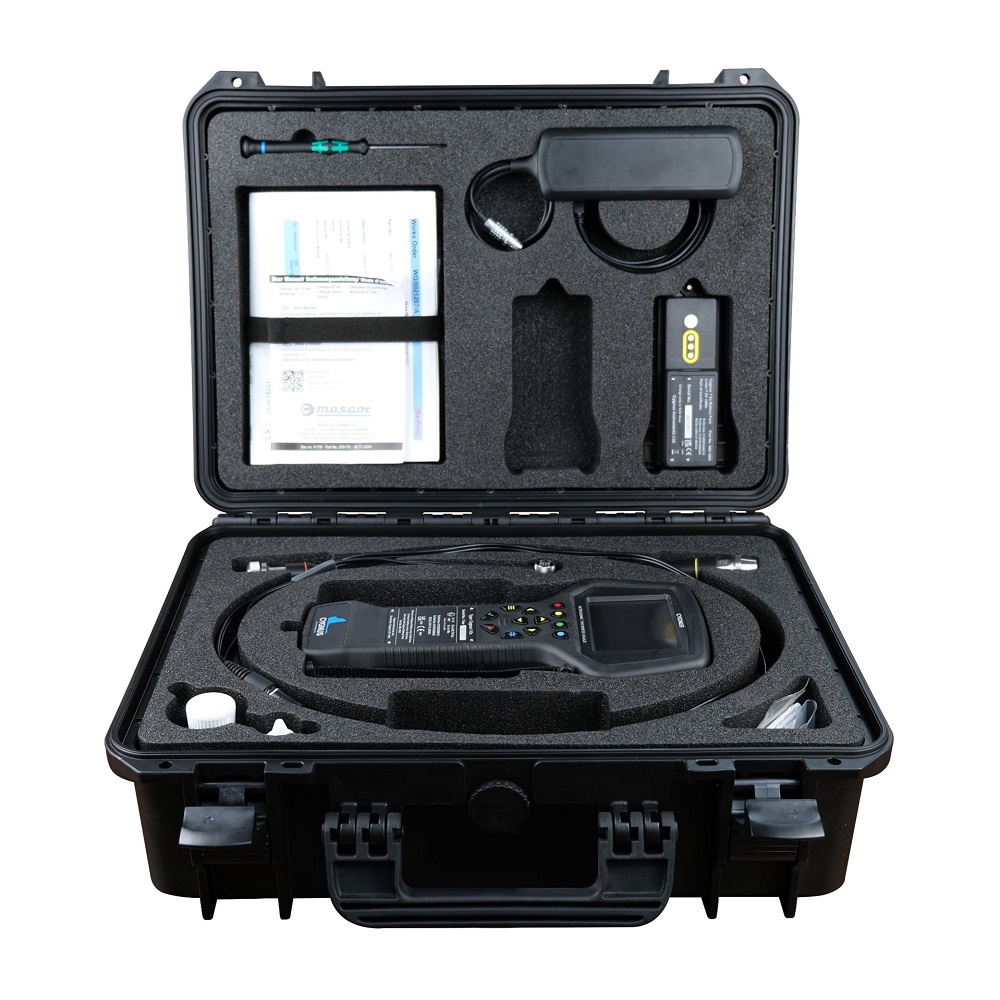

潤滑檢測專用超音波檢測儀
產品介紹
潤滑檢測專業型超音波檢測儀為數位式顯示機種,可以顯示10~120 dBuV的分貝值。專業型儀器配有潤滑感測器(x1)及潤滑感測器專用套件,FSR200SD Base Kit及DataDump電腦資料傳輸軟體。
FSR200SD Base Kit 包括:顯示主機x1,耳機x1,充電器x1,USB傳輸線x1,肩帶x1,攜帶箱x1.
- SDT超音波檢測儀可應用範圍如下：
- 壓力管路、真空容器、閥門、熱交換器、鍋爐、冷凝器等洩漏問題檢測
- 軸承狀況檢測與趨勢追蹤、軸承潤滑狀況檢測
- 卻水器狀況檢測
- 泵浦空蝕問題檢測
- 電氣問題檢測
- 密封性檢測
規格
商品型號: SDT200 Lube Tech Kit
- 主機規格：
- 顯示螢幕：高對比LCD背光顯示螢幕，解析度128 x 64 點
- 使用電源種類：可充電式鎳氫電池 (容量 4.4 Ah)
- 操作溫度範圍：-15℃ to 60℃
- 外型尺寸與重量：226 x 90 x 40 mm，約830g (含電池)
- 量測範圍：10 dBuV ~ 120 dBuV (顯示解析度0.1 dBuV)
- 靈敏度：可量測0.1mm孔徑的洩漏＠6 psi壓力/70呎距離
- 精確度：-0.5 dBuV，訊號與噪音比：一般為5 dBuV
- 量測頻寬：(-3dB) 2 kHz，量測頻率範圍：38.4 ±2 kHz，固頻38.4 kHz

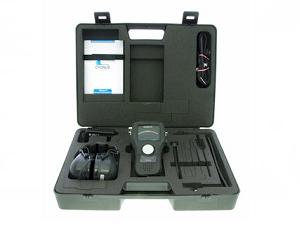

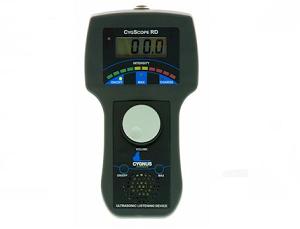

CygScope RD 超音波測漏儀(LCD螢幕)
產品介紹
Ultrasound amplitude clearly displayed on LCD screen and LED bar-graph
Equipped with a second amplification circuit, the LCD readout is independant of the LED bar-graph
Audio alert through built-in loudspeaker or headphones.
The function of storing maximum value of an ultrasound signal helps locate the source of the maximum amplitude
Backlight switches on automatically when the ambient light is low
Practical, robust instrument suited to virtually all types of leak detection
Simple to use
Highly sensitive, with a large variety of probes
規格
Operation Frequency: Approx. 40kHz
Display: Digitally on LCD with backlight. LED - scale (10 steps)
Internal Loudspeaker
Power Supply: Rechargeable batteries with battery charger
Operating Time: Approx. 10 hours
Charging Time: Maximum 9 hours
Dimensions: 190 x 110 x 85 mm
Weight: Approx. 500g
Operating Temperature: 0°C to +40°C
Storage Temperature: -10°C to +50°C
Protection: IP 20
CE Conformity: EC directives and laws 89/336/EEC (Electromagnetic Compatibility)

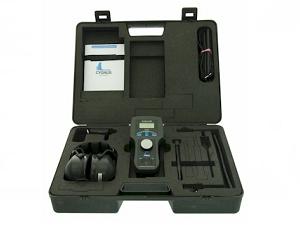

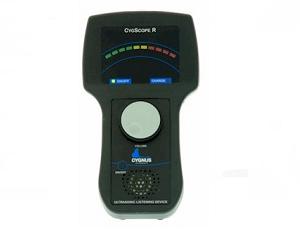

CygScope R 超音波測漏儀
產品介紹
Practical, robust instrument suited to virtually all types of leak detection
Ultrasound amplitude clearly displayed on LED bar-graph
Simple to use
Audio alert through built-in loudspeaker or headphones. Leaking gas or liquid in pipelines emits ultrasound. These emissions can be precisely located using the CygScope R.
Highly sensitive, with a large variety of probes
規格
Operation Frequency: Approx. 40kHz
Display: LED - scale (10 steps)
Internal Loudspeaker
Power Supply: Rechargeable batteries with battery charger
Operating Time: Approx. 10 hours
Charging Time: Maximum 9 hours
Dimensions: 190 x 110 x 85 mm
Weight: Approx. 500g
Operating Temperature: 0°C to +40°C
Storage Temperature: -10°C to +50°C
Protection: IP 20
CE Conformity: EC directives and laws 89/336/EEC (Electromagnetic Compatibility)
